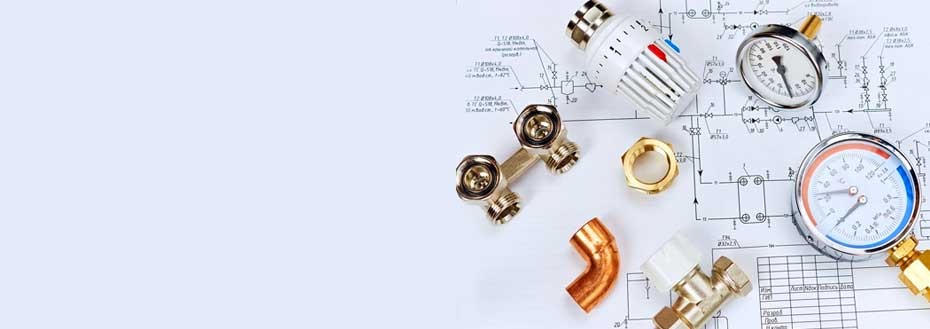

Case Study on Installation Guidelines for Sanitary Fittings Company

O2I Designed Smart Installation Guidelines for a Top Bath and Kitchen Fittings Manufacturer

The Client

The Client Requirement

The client is a world leader in designing and manufacturing high-quality kitchen and bath fittings. Their unique way of approach combined with classic craftsmanship made their products a major hit around the globe. The client is in the business for over a century and is a chosen partner for both small and big construction projects. Right from commercial to residential projects, the client provides high-quality fittings and furnishings to numerous clients. Located across USA and UK, the client has over 70 showrooms and support offices in prime locations in major cities.

Requirement & Challenges

The client needed help in designing the installation guidelines to aid installation of their range of bath and kitchen fittings and furnishings. The client needed profile drawings, CAD blocks, and service parts documents for easy installation and fittings. The client is highly quality focused and the project needed a dedicated and experienced team with a penchant for perfection to not just meet the requirements but also exceed their expectations. The challenge was to complete designing and revisions within the timeframe allotted to ensure there is no delay in the installation processes. The client engaged us for this project on an ongoing process.

Our Solution

Our Solution

The client provides us with 3D models of kitchen and bathroom fittings that includes hardware and lightings. With the drawings, PDFs, and assembly drawings of the products, we are expected to aid the installation process by helping the client design installation guidelines as well as draft product detailing and specifications for various marketing purposes. The process flow of the solution we offered is as follows -

  1. Collected the input from the client through the EPDM file transfer
  2. Logged in to EPDM and work on updating the files
  3. Converted the existing files to SOLIDWORKS files
  4. Created engineering drawings
  5. Profile drawing creations
  6. Created CAD blocks
  7. Installation guidelines
  8. Service parts document creation

We used SOLIDWORKS Composer to create the installation guidelines. The project bi-weekly meetings were attended by the team that composed of 3 modelers with a team leader. The team has being working for 12 years and is continually superseding the client expectation.
